Quality control for drawings, without the dread.

Checking issued drawings is painstaking work — and it is exactly what keeps costly errors and rework off site. Archi Check makes it quick, clear and genuinely pleasant: mark up issues, assign corrections, and track each one to closed. The drawing fills a whole second screen, so every line and note is bigger and sharper than a printed set.

Buy seats Try free for 14 days

See how it works

Windows available now · macOS coming soon · per-seat licensing · 14-day trial

Isometric illustration of a PDF drawing set being checked across a workspace screen and a full-screen markup screen

Two·screen

Read every line and note at full size — clearer than a printed set

Local·first

QC data lives beside your files — no cloud sync of comments

5 roles

Manager, Project Lead, Checker, Corrector, Viewer

€149/yr

Per seat, billed yearly · or €22 per seat monthly

the difference

One window to manage the review.
One screen for the drawing itself.

Archi Check runs as two live-synced windows. Keep the workspace — drawings, comments and status — on your main monitor, and send the drawing to a second screen where it fills the glass edge to edge. Zoom into the smallest dimension or note and read it clearly — the way a printed check set never let you.

See it at full size. The PDF takes the entire second screen, so the detail you are checking is bigger and crisper than paper — nothing is too small to read.
Always in sync. Both windows share one live view. Select a comment in one and it is there in the other, instantly.
Smooth zoom & pan. Cursor-anchored zoom and middle-drag pan, so moving around a dense drawing feels effortless.

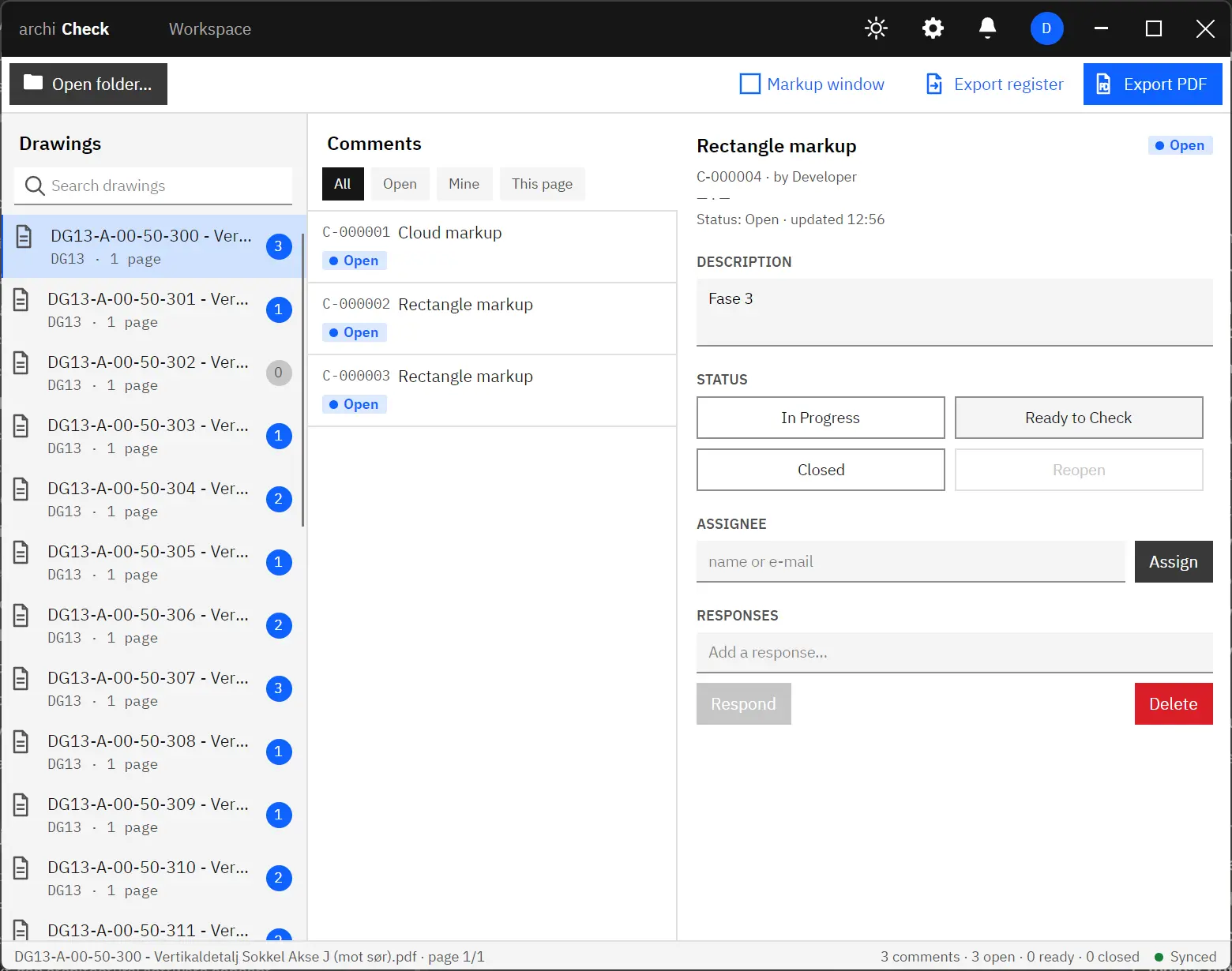

Archi Check workspace: drawings list, comments and a comment detail panel — Screen 1 — workspace & register

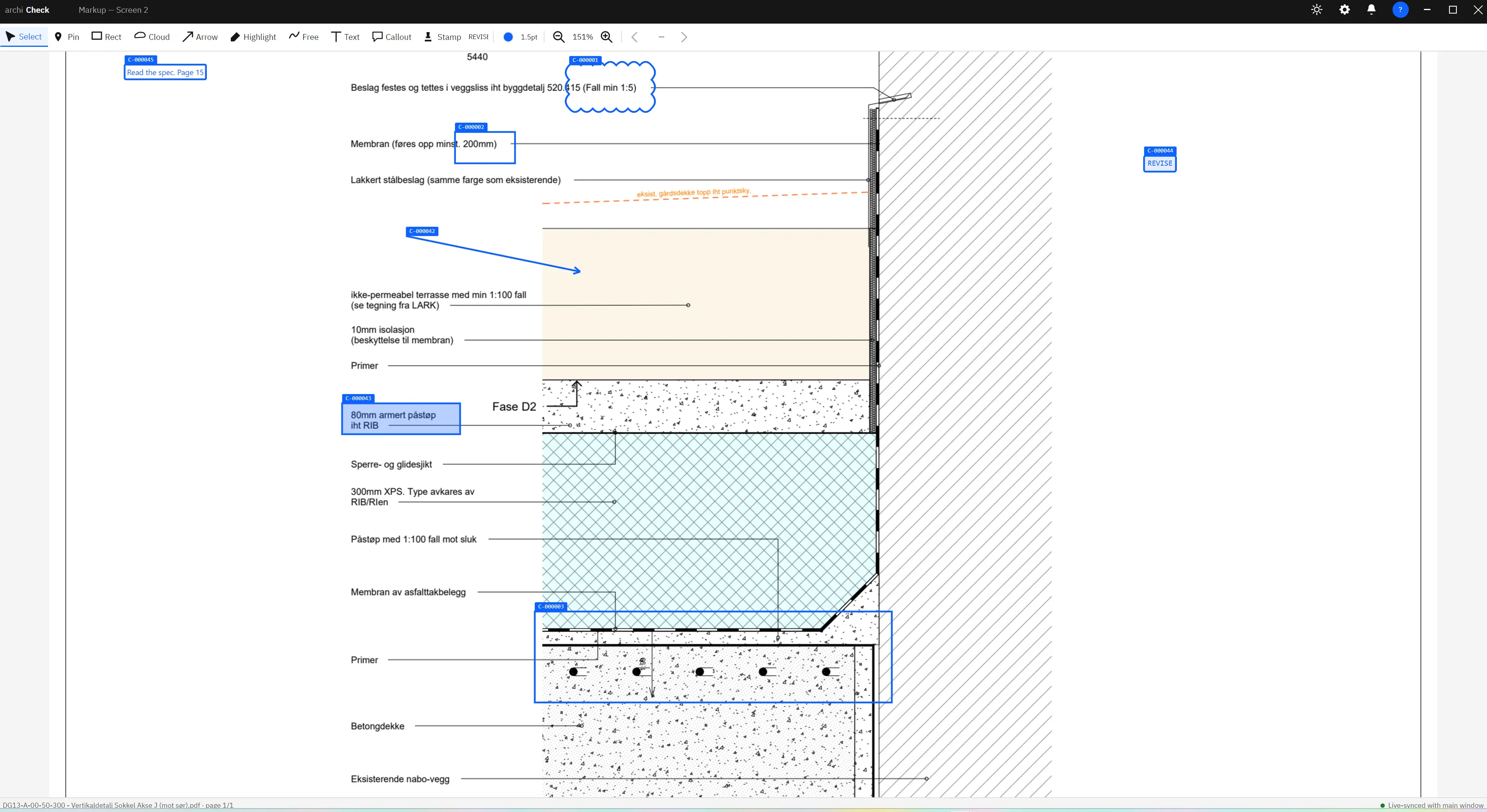

Archi Check markup window: a drawing with rectangle and cloud markups — Screen 2 — drawing, full-bleed

The QC loop

Check → Correct → Verify → Close.

A clear, four-stage review that everyone on the team can follow. Each markup is one tracked comment, from the moment it is raised to the moment it is closed.

Check

Open a folder of PDFs, mark up an issue, and write a note. A tracked comment is created.

Open

Correct

Assign the comment to a corrector and move it to In progress. Responses are added as work proceeds.

In progress

Verify

The corrector marks it Ready to check. A checker reviews the fix against the drawing.

Ready to check

Close

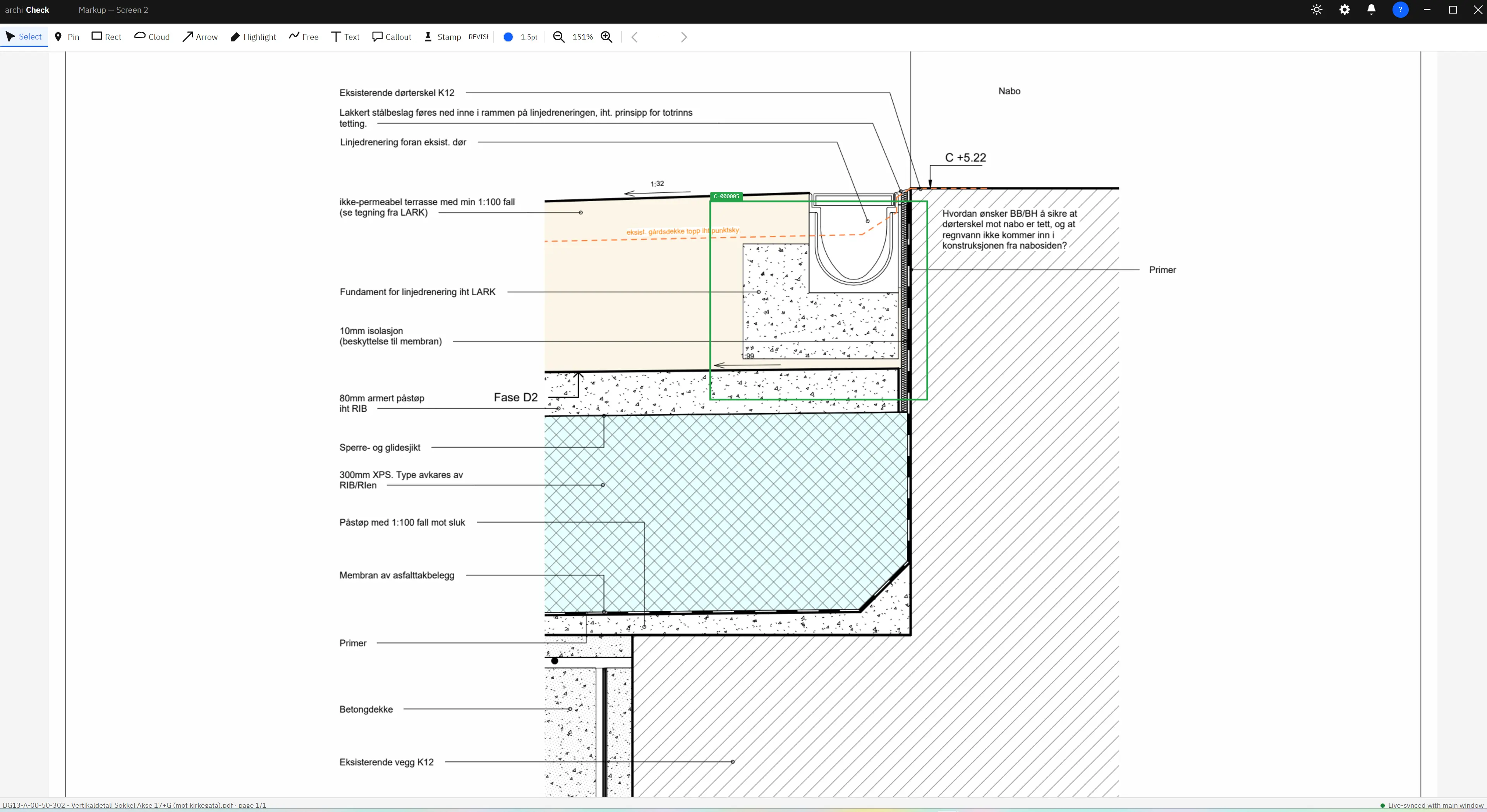

Close resolved items and export a marked-up PDF and register — the original is never touched.

Closed

Not resolved? Reopen — it loops straight back to Open

No re-scanning, ever. Mark up a printed set and you still have to scan it all back in to archive your control. In Archi Check the workflow is digital from the very first comment — every markup, response, assignment and status change is recorded as you work. Your QC record builds itself, and exports to a register and a marked-up PDF in one click.

archi Check — comment register & status

Markup

Every markup tool you reach for.

A full QC markup set, on par with the tools you already know. Each markup is one tracked comment, tagged with its display number — like C-000001 — and carries its own colour and line weight. Select, move, resize or delete any of them at any time.

Mark a single point

Rectangle

Box an area

Cloud

Revision cloud

Arrow

Point to a detail

Highlight

Translucent marker

Freehand

Free pen stroke

Text

Place a text note

Callout

Bubble with a leader line

Stamp

QC rubber-stamp badge

Colour

Line weight1 / 2 / 4 pt

Stamp presetsAPPROVEDREVISEREJECTEDFOR REVIEWAS BUILT

archi Check — Markup · Screen 2

Archi Check markup window showing pin, cloud, rectangle, arrow, text and stamp markups on a drawing

Status tags stay colour-coded by state — so you read Open / In progress / Closed at a glance, even when markups use custom colours. Text, callout and stamp content flows straight into the exported register.

Roles & permissions

Five roles. One admin area.

Invite your team by email and assign a role from the admin area. Each role gates exactly what a member can do — and the app enables or disables actions to match.

Admin

Manager

Full control — everything, including billing and seats.

Runs QC

Project Lead

Everything except billing & seats. Oversees all comments.

Reviews

Checker

Raises comments and drives the review pass.

Fixes

Corrector

Addresses issues and responds — but cannot raise new comments.

Read-only

Viewer

Sees everything; changes nothing. For stakeholders.

Capability	Manager	Project Lead	Checker	Corrector	Viewer
Comments
View comments
Create comments (markups)
Edit own comments
Edit anyone's comments
Workflow
Change status
Assign corrections
Add responses
Export register & marked PDF
Administration
Manage users & roles
Manage license (billing & seats)

where your data stays

Your folder stays the source of truth.

Archi Check works right where your drawings already live — your project folder on OneDrive, SharePoint or a network share. There is nothing to migrate, and your QC data never leaves that folder.

Stays with your filesComments, history and exports live in your own project folder. Only sign-in goes online.
Built for teams on a shared driveYour whole team can review the same set at once, and everyone sees the same comments — no separate platform to set up.
Non-destructiveExports are saved as a new copy. Your original drawings are never changed.

ProjectFolder/ OneDrive · SharePoint · NAS DG13-A-00-50-300.pdf DG13-A-00-50-301.pdf DG13-A-00-50-302.pdf … ✓ QC comments & exports — kept right here

Where it fits

Built for the QC job — not a general PDF editor.

If you only need to run drawing QC, a full PDF suite is more tool than the task asks for. Archi Check does the review loop well, and little else on purpose.

	General PDF suite	CDE / BIM platform
Purpose-built QC register & status workflow	partial
Role-based assignment of corrections	—
Drawing fills a whole second screen	—	—
Data stays in your own project folder		—
Built-in multi-user on a shared drive	—	cloud
QC record captured automatically — no scanning	—	cloud
No migration, no heavy platform		—
Calm, focused interface — light & dark	busy	busy

Pricing

Per seat. Simple.

Buy a seat for each named member of your team. Sign in by email; assign roles in the admin area. Every invited member is always authorized while their seat is active.

Billing

Seats

Includes

All five roles & the admin area
Marked-PDF and register (XLSX + CSV) export
Works offline within a grace window
Windows now · macOS coming soon, included

ready when you are

Catch every error before it reaches site.

QC protects your drawings, your budget and your name — so we made it quick, clear and genuinely pleasant to do. Open a folder, check the set, and export a register your whole team can read.
